Mobile portal Eagle G60

G60_cargo_2017

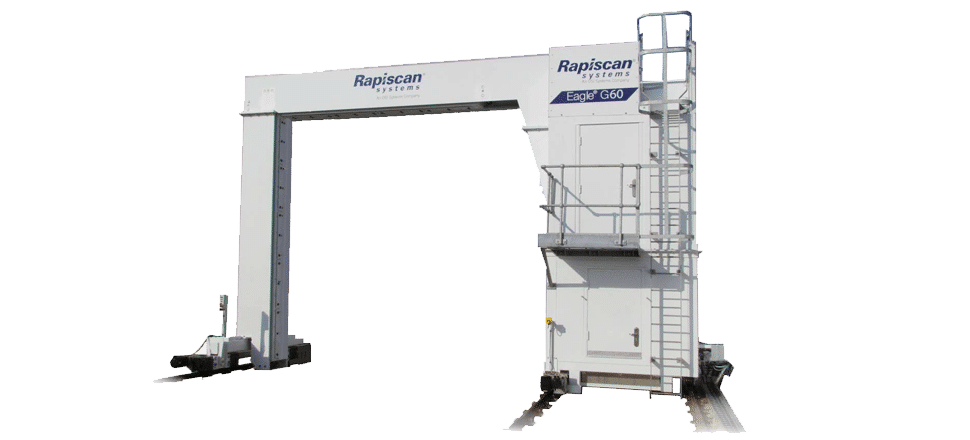

The Rapiscan Eagle G60 Series is a family of control systems based on a cargo X-ray imaging at high energy in a gantry configuration mounted on rail technology.

Supplier: Rapiscan

Caracteristics

  • Automated solution
  • Quick Scan
  • high energy
  • Easy to move

The Rapiscan Eagle G60 Series is designed to operate with a small staff. This makes this system ideal for cargo control inputs of sensitive sites, border crossings and also to seaports. These units can be quickly disassembled and shipped to another site , requiring only the laying of rails on the new site.

This equipment allows automatic and rapid cargo control density . These machines are available with a 6 MV linear accelerator capable of providing a penetration of 400 mm with an optional dual energy source . The source and the X -ray detectors are placed in an electric gantry conveyor mounted on rails. The system automatically scans unoccupied vehicles on rails while the gantry moves over them. Rail length determines the number of vehicles that may be inspected by a single passage . The gantry is controlled remotely from a control room where the X-ray images are sent for analysis and evaluation .

Specifications

  • Energy X-ray 6 MV, 3/6 MV source dual energy option
  • Inspection 0.4 m 4.6 m height fields x 2.8 m width x length rails
  • Scanning speed: 270 mm / s
  • Direction of the scan: inspect in both directions
  • Penetration: 340 mm steel (G6002), 400 mm steel (G6003HP)

Product applications

  • Vehicle control
  • Cargo control
