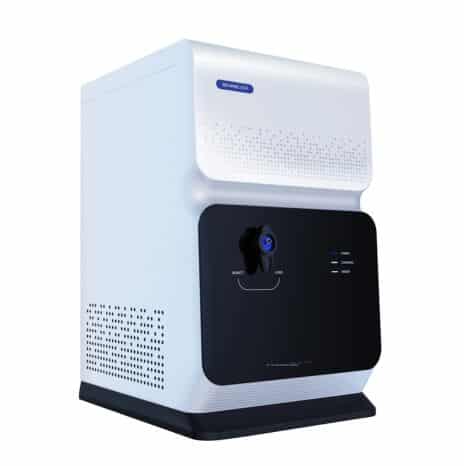

CIC-D100 Single Channel
Shine
The CIC-D100 ion chromatograph enables precise analysis of anions, cations, and other polar substances, thanks to an automated system that stabilizes quickly and is easy to use — ideal for various applications in both laboratory and field settings.
The CIC-D100 ion chromatograph, a flagship product, is designed for conventional ion detection, with or without an autosampler.
Advantages
- Auto-range conductivity detector :
Allows direct detection of signals ranging from ppb to ppm concentrations without manual range adjustment.
- Eluent preheating
Maintains a constant temperature of the eluent entering the column to ensure data stability.
- Smart switch
A simple click is enough to start with automatic parameter settings or to stop the system.
Multiple detectors available
- Integrated 3D constant temperature circulation technology
Thermal stabilization time is less than 30 minutes, ensuring accuracy and reliability of analysis results.
This new instrument is capable of detecting anions, cations, and other polar substances in various types of matrices. It delivers excellent performance, with the ability to separate ions differing by up to four orders of magnitude, ensuring greater precision and reliability compared to the previous version. Equipped with features such as one-click mode switching and intelligent maintenance, the new CIC-D100 provides an optimized user experience. It is perfectly suited for commercial laboratories, industrial enterprises, and fields such as environmental protection, the chemical industry, mining, and metallurgy.
| Channel(s) | 1: Anions ou Cations |
| Pump | Flow Rate Range 0.001~9.999mL/min |
| Autosampler | Optional: SHA D9 14mL×96 / SHA 18i With automatic dilution function 120 vial, 2ml (standard) 48 vial, 5ml (Optional) 30 vial, 7ml (Optional) 30 vial, 10ml (Optional) |
| Column Heater | Ambient + 5 to 60 ℃ |
| Conductivity Detector | Type Auto-range conductivity detector Cell Volume ≤0.8μL Detection Range 0～35000μS/cm Baseline Noise ≤0.001μS/cm Baseline Drift ≤0.02μS Temperature Range Ambient +5℃~60℃ Instrument Linearity ≥0.999 Minimum Detectable Concentration Cl-≤0.0005ug/mL Li+≤0.0005ug/mL |
| Suppressor | Self-Regeneration electrolytic micro-membrane suppressor |
- Environment
- Petrochemicals
- Agri-food (Water, Beverages…)
- Energy
- Batteries
- Cosmetics
- Textiles
- Ionic Pesticides
- Chemical Industry
- Pharmaceuticals
- Mining
- Electronic Components and Semiconductors…
