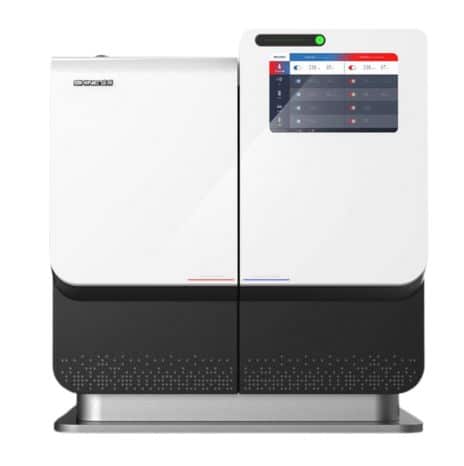

CIC-D300+ Dual with Dual Eluent Generator

Advantages

• 10-inch HD Touchscreen :

  Real-time display of the fluidic pathway and instrument operating status.

• Built-in Dual-Membrane Eluent Generator :

  No need for degassing tubes or trap columns. With pressure resistance up to 30 MPa, the fluidic path is simplified and dead volume is reduced.

• Ultra-Pure Ion Purifier :

  Enables in-line water purification, lowering the requirements for water quality. This reduces baseline noise and improves signal-to-noise ratio.

• Aspiration Sampling System :

  Uses a peristaltic pump to aspirate samples, minimizing cross-contamination at the injection port.

• Gas-Liquid Separator :

  Effectively removes most air bubbles in the circuit. A constant low-pressure degasser removes residual dissolved gases in water.

• Secondary Infusion System :

  Composed of a piston pump and a peristaltic pump, combined with an ultra-pure inline purification module and a low-pressure gas-liquid separator. It ensures highly stable infusion.

• Integrated Heating and Insulation System :

  Features multi-point temperature control and full insulation design to handle extreme environments. Allows eluent preheating for system stability.

• Advanced Safety System :

  Equipped with alarms for :

  Eluent consumption, leakage, low pressure, overpressure, and system errors—ensuring safe operation and preventing misuse.
