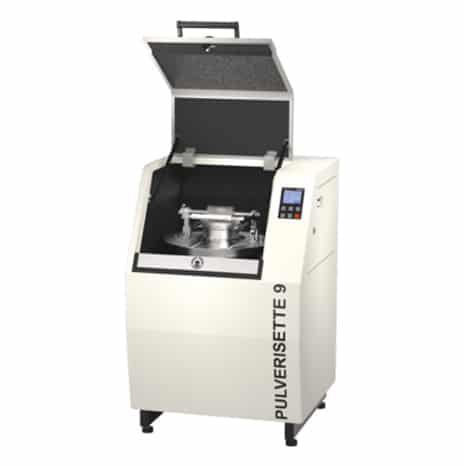

Vibrating Cup Mill PULVERISETTE 9
Fritsch
Stronger, Faster, Better
The new, completely modified FRITSCH Vibrating Cup Mill PULVERISETTE 9 offers many practical advantages in all areas in which hard, brittle and fibrous material must be ground extremely quick down to analytical fineness.
Advantages
- More power with new drive concept
- Extra-fast grinding with up to 1500 rpm
- Precise adjustment of rotational speed, grinding time and pause periods
- Programming and storage of grinding cycles
Description
Specification
Applications
Resources
In the Vibrating Cup Mill, the grinding is performed by horizontal circular oscillations of the grinding set on a vibrating plate. The grinding set consisting of ring and puck comminute the grinding sample with extremely high pressure, impact forces and friction.
- Dimensions (floor instrument) : 77 x 76 x 116 cm
- Working principle : impact
- Optimal for material type : hard, medium-hard, brittle, fibrous samples and for metal free-grinding
- Grinding tools : grinding puck with impact rings
- Materials of the grinding tools : hardened steel, chromium-free tool steel, hardmetal tungsten carbide, agate, zirconium oxide
- Max. feed size (depending on the material) : 12 mm
- Min. sample quantity : 10 – 20 ml
- Max. throughput (depends on material) : 250 ml
- Final fineness : 10 – 20 µm
- Glass and ceramics industry
- Mining and metallurgy
- Geology and mineralogy
- Chemical industry
- Soil research
