Epsilon 1 Lubricating oils

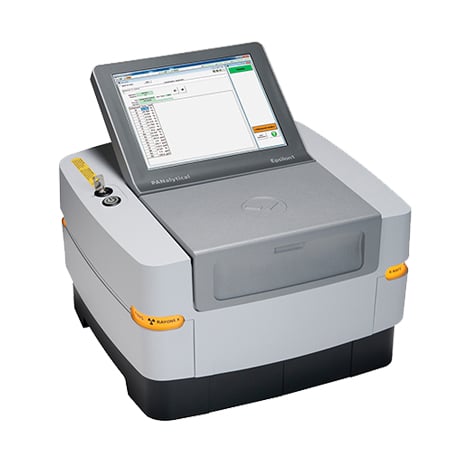

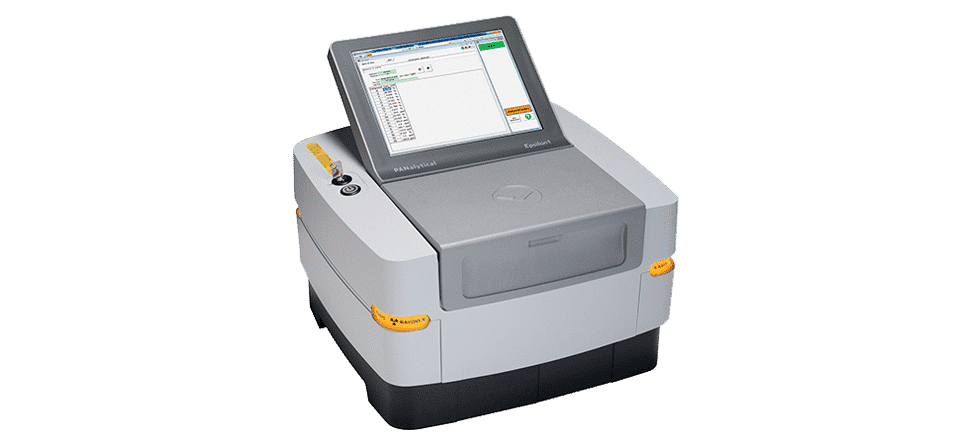

Epsilon 1 is a star-performing benchtop XRF instrument for the analysis of phosphorus, sulfur, calcium and zinc in unused lubricating oil in compliance with the latest ASTM D6481 test method. The repeatability for all four additives is well within the limits set by D6481.

Sample handling :

– Highly repeatable sample positioning
– Typical 5 ml liquid
– Spillage protection against liquids
– Oil analysis in compliance with ASTM D6841

X-ray tube :

– High-stability ceramic side window
– 50 micrometer thin window (Be)
– Silver anode, ideal for phosphorus and sulfur analysis
– Max. voltage 50 kV, ideal for zinc analysis

Detector :

– High-resolution, typical 135 eV
– 8 micrometer thin window (Be)
– High count rate detector capacity

Software features :

– Operator mode with big buttons for easy operation
– Advanced mode with many features

Analysis of additives by physical property of the material
