Intelligent Vehicle Chassis Scanners Gatekeeper IVUS

Rapiscan

Galery
Galery
Galery
Galery
Galery
Galery
Galery

Play

Ask for a quote

Contact a technical expert

A smart security solution to effectively inspect vehicle chassis and detect threats in an instant.

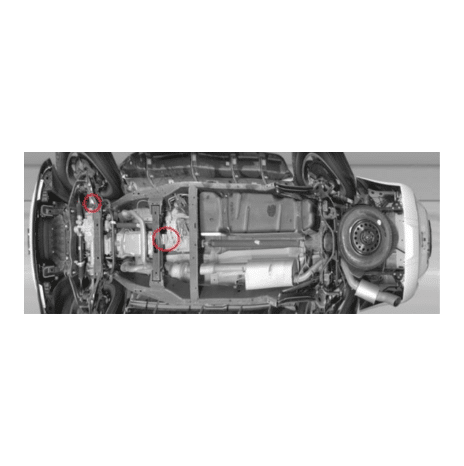

Automatically analyzes and scans the underside of vehicles for anomalies, foreign objects or changes using high-resolution dual view imaging.

Advantages

  • Creates two high-resolution digital images of a vehicle chassis.

  • Identifies the vehicle by comparing the image with a database.

  • A relocatable solution, ideal for temporary control posts and one integrated directly into the pavement.

  • Detects foreign objects or changes.

  • Certified for extreme environments (IP68)

Description
Specification
Applications
Resources

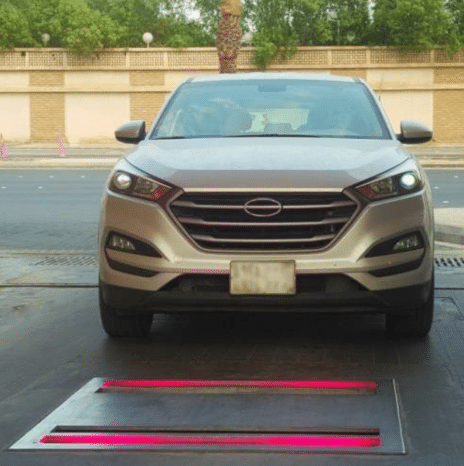

The Gatekeeper IVUS 2VR & 2VF is a smart vehicle chassis scanner designed to enhance safety at fixed or temporary checkpoints. Using high-resolution dual-view imaging technology, it can inspect the underside of vehicles in seconds, detecting any anomalies, suspicious objects, or modifications.

The two images provide different views to facilitate detection of threats or potentially hidden objects, improving foreign body detection. High-resolution imaging and rapid detection of system anomalies make it ideal for the inspection of a wide range of vehicles at security checkpoints and border posts.

Combined with Gatekeeper intelligent vehicle classification analysis and intelligent license plate analysis, the high-resolution IVUS image can also confirm the make, model, and license plate of the vehicle, validating this data against the digital fingerprint in a few seconds for greater security.

Available in two versions:

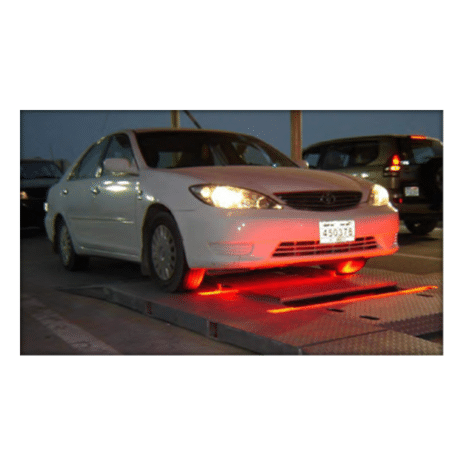

  • IVUS 2VR: relocatable version, ideal for temporary positions.

  • IVUS 2VF: built-in version, perfect for permanent installations.

Easily integrated with other security devices, the IVUS 2VR & 2VF is a turnkey solution, reliable and robust, suitable for demanding environments (IP68 certification).

IVUS 2VR (Relocatable)

  • Installation type: On ramp (mobile, temporary)
  • Camera: Dual view (60° front and back)
  • Lighting: Integrated LED rails
    Maximum axle load: Up to 9,070 kg (standard) or 27,210 kg (reinforced)
  • Inspection speed: Up to 32 km/h
  • Theoretical flow: 360 vehicles/hour
  • Operating temperature: -40°C to +70°C
  • Environmental protection: IP68
  • Power supply: 110 / 240 V – 50/60 Hz
  • Power consumption: 800 W
  • Operator interface: Terminal with screen or PC without screen
  • Integrated software system: MFIS (Multi-Factor Intelligent Security)
  • Standards: CE, IEC 60204-1:2016



IVUS 2VF (Fixed mounting)

  • Installation type: Integrated in the pavement (fixed)
  • Camera: Dual view (60° front and back)
  • Lighting: Integrated LED rails
  • Maximum axle load: Up to 9,070 kg (standard)
  • Inspection speed: Up to 32 km/h
  • Theoretical flow: 360 vehicles/hour
  • Operating temperature: -40°C to +70°C
  • Environmental protection: IP68
  • Power supply: 110 / 240 V – 50/60 Hz
  • Power consumption: 800 W
  • Operator interface: Terminal with screen or PC without screen
  • Integrated software system: MFIS (Multi-Factor Intelligent Security)
  • Standards: CE, IEC 60204-1:2016

  • Checkpoints and control points

  • Border and customs

  • Strategic sites and critical infrastructure (power plants, airports, ports, embassies)

  • Temporary events and high-risk areas

  • Logistics facilities and freight platforms
