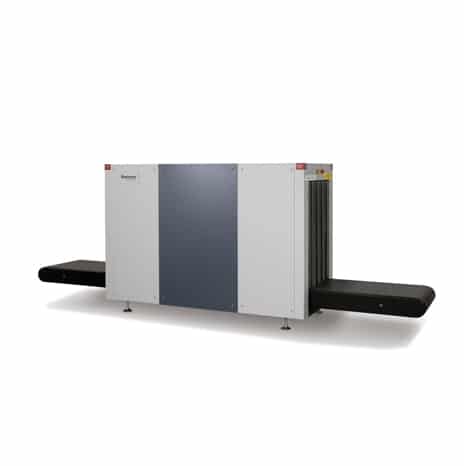

624XR x-ray scanner

High tunnel opening and low conveyor designed for easy loading and uploading of upright baggage

Security_X-ray scanner_Conventionnal X-ray scanner_624XR x-ray scanner

With a 550 mm (21.7 inches) wide by 850 mm (33.5 inches) high tunnel openingand a low conveyor, the Rapiscan 624XR is designed for easy loading

Supplier: Rapiscan


  • Upright Baggage Screening
  • Easy Loading Conveyor
  • Network Enabled
  • Cost Effective

The 624XR’s dual-energy detection provides provides automatic color coding of materials so that screeners can identify the material composition of a scanned object, while its compact footprint allows customers to make the most of the available space at a checkpoint. Like all systems in the 600 series family of X-ray scanning solutions, the Rapiscan 624XR is built on a standardized platform that makes it easy to install and maintain, and comes with features such as dual-energy detection, a streamlined, ergonomic design, and Rapiscan’s feature-rich OS600 system software.


  • Dimensions (LxHxW) : 3,466 x 1,296 x 1,325 mm
  • Tunnel Size : 550 mm (W) x 850 mm (H)
  • Conveyor Speed: 0.20 m/sec
  • Conveyor Max Load: 165 Kg evenly distributed
  • Approx Weight: Net: 840 Kg / Gross: 1190 Kg

Product applications

  • Fragile BPI control
