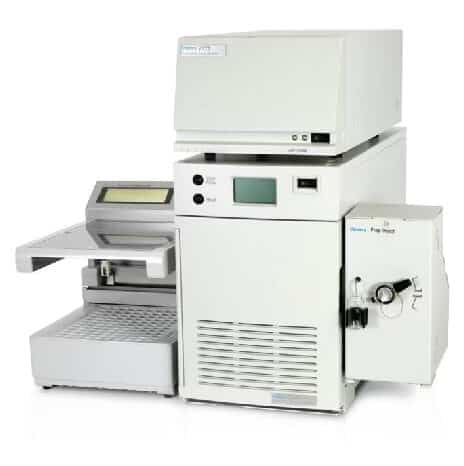

LC Prep 150 System

Waters

Galery
Galery

Ask for a quote

Contact a technical expert

A versatile system to suit your purification requirements

The LC Prep 150 System is the perfect fit-for-purpose solution for the rapid isolation and collection of your valuable complex samples with complete confidence.

Advantages

  • Flexible solvent delivery options allowing binary or quaternary based pumps providing low-pressure multi-solvent blending or high pressure gradient mixing of flow rates up to 150 ml/min.
  • Easy to use manual or automated sample injection options allow the versatility to accommodate a wide range of workload requirements.
  • Identify and isolate your compounds of interest with the highly sensitive 2489 UV/Visible or 2998 Photodiode Array detectors, providing enhanced linear range to accommodate highly concentrated samples.
  • Confidently purify sample loads of milligrams to grams when using internal column diameters of up to 50mm.
  • Use the easy-to-navigate ChromScope software delivered with sample set wizard, stacked injection wizard, key fraction collection parameters, fraction simulation modeling, and customizable reporting with drop and drag features.
Description
Specification
Applications
Resources

The LC Prep 150 System is a fit-for-purpose solution designed for scientists requiring robust system performance with intuitive software for dedicated personal purification or quick adoption in centralized labs. Systems are designed to satisfy your application requirements, whether you are processing a few samples a day, or your workload demands greater through-put with unattended automation. The LC Prep 150 System allows you to rapidly process your valuable complex mixtures resulting in high purity and recovery with complete confidence.

Operating flow rate range : Programmable from 0 to 150 mL/min, in 0.01 increments
Operating pressure range : 5000 psi (345 bar)
Supported column dimensions : 10, 19, 30, and 50 mm I.D.
Wetted material : 316 stainless steel, UHMWPE, sapphire, ruby, Tefzel (ETFE), Teflon (FEP, PTFE, FPA), nitronic 60, vlacon H, chemraz, and PEEK
Software : ChromScope
