The perfect XRF analyzer with a high performance

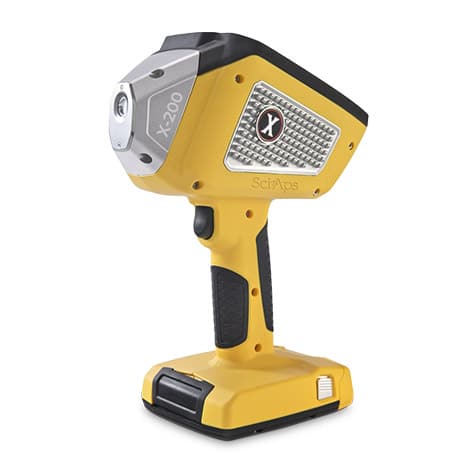

The SciAps X-200 portable XRF (X-ray fluorescence) analyzer offers comparable or superior speed and performance to the top end analyzers from other brands
The X-200 has the same highly optimized X-ray tube and detector geometry as the X-300. The X-200 is rapidly becoming the choice for scrap processing and non-destructive testing due to the speed and analytical performance combined with the lightweight, small form-factor design.
It’s fast on every alloy family including aluminum alloys. For geochemical applications, LODS are about 1.5x higher than the X-300, and it offers the same suites of elements for environmental, pathfinder, exploration and mining.
3.3 lbs with battery
7.25″ x 10.5″ x 4.5″
On board rechargeable Li-ion battery, rechargeable inside device or with external charger, AC power, hot-swap capability (60s max swap time).
5″ color touchscreen Smartphone type display – PowerVR SGX540 3D graphic.
6-40kV, 200uA Rh anode for alloy testing, 6-50kV, 200uA Au anode for most other Apps.
20mm 2 silicon drift detector (active area), 135eV resolution FWHM at 5.95Mn K-alpha line.
6 position filter wheel for beam optimization.
Processing Electronics Host Processor
ARM Cortex -A9 dual-core / 1.2GHz Memory: 1GB DDR2 RAM, 1GB NAND Results Storage: 8GB SD
Fundamental parameters. For Geochem and Env. Soil Apps, users may also choose “Compton Normalization” method and/ or use empirically derived calibrations.
Internal shutter is also 316 stainless for totally automated calibration and energy scale validation.
Environmental Temp. Range
10°F to 130°F at 25% duty cycle.
Password protected usage (user level) and internal settings (admin).
