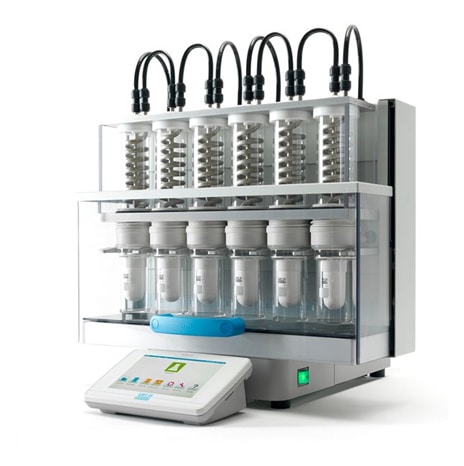

SER 158 Series Automatic Solvent Extractor

Velp

Galery
Galery

Ask for a quote

Contact a technical expert

Safe Solid-Liquid Extractor for a Variety of Applications

Fully automatic and cloud-enabled extractors, available in 3 and 6 positions that guarantee security, accuracy and precision in the determination of extractable matter according to Randall and Twisselmann.

Advantages

  • The SER 158 Series automatic solvent extractors in 3 and 6 positions are the accurate and precise solution for quantitative and qualitative extractable matter determination according to Randall method, analyzing up to 5 times faster than traditional Soxhlet.
  • The solid-liquid extraction process removes the soluble components from solids using a liquid solvent in 5 steps. The SER 158 works in accordance with international standards such as AOAC, ISO, EPA, APHA, UNI.
  • Safe and powerful heating combined with advanced software and security processes guarantee reproducible extraction processes.
  • SER 158 is fully automated to maximize productivity and free operator time.
Description
Specification
Applications
Resources

Solvent extraction with the SER 158 can be performed for extractable matter determination on a wide range of sample matrices either in food and non-food industries (such as pulp, paper, textile, chemical etc…) and for sample preparation. The solid-liquid extraction process removes the soluble components from solids using a liquid solvent. The SER 158 works in accordance to international standards such as AOAC, ISO, EPA, APHA, UNI

POSITIONS: SER 158/3 3 positions, SER 158/6 6 positions
WEIGHT (SER 158/CONTROLPAD): SER 158/3 29/1 Kg / SER 158/6 36/1 Kg
DIMENSIONS (LxHxD): SER 158/3 358x546x450 mm / SER 158/6 546x546x450 mm
POWER: SER 158/3 630/850 W / SER 158/6 630/850 W
MAXIMUM CAPACITY: SER 158/3 21 samples/day/unit / SER 158/6 42 samples/day/unit
SCREEN: 7” color touchscreen – Removable ControlPad
DIMENSIONS WITH CONTROLPAD: SER 158/3 358x546x570 mm / SER 158/6 546x546x570 mm
