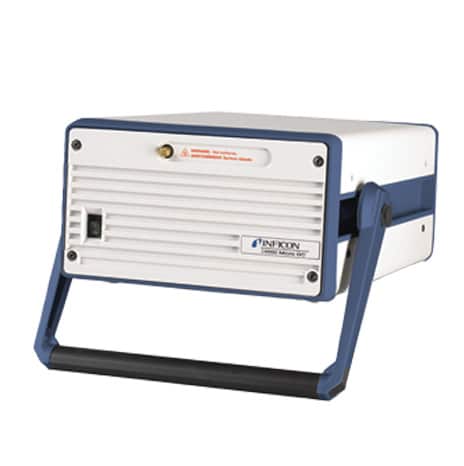

3000 Micro GC
1, 2, 3 and 4-Channel Systems
The 3000 Micro GC Gas Analyzer is a powerful GC solution that provides fast, accurate, reliable analysis of your gas sample on-line, right at the sampling point.
Advantages
- Fast, accurate, reliable analysis of your gas sample on-line
- Compatible with highly pressurized (liquefied) gases
- Minimum Detection Level 10 ppm
- Linear Dynamic Range 10E6 ± 10%
It is ideal for the rapid analysis of gas streams in alternative energy, coal mine safety, and the hydrocarbon processing industry, which includes refineries, natural gas production and distribution, chemical operations, and oil and gas exploration.
SAMPLING
■ Compatible with mixtures that are in a gaseous phase at standard temperature and pressure (STP); typically for compounds with boiling points <250° C
■ Compatible with highly pressurized (liquefied) gases, such as liquefied petroleum gas (LPG), with heated vaporizer accessory
■ Maximum sample pressure <207 kPa (30 psig); recommended sample pressure ambient -69 kPa (ambient -10 psig)
SAMPLE INJECTORS
■ Micro-electromechanical devices fabricated from silicon and other inert materials
■ Injector types fixed volume, heated; variable volume/timed, heated; variable volume/large loop, heated; or backflush to vent, heated
■ lnjection volume 1 to 10 μL for variable volume/timed and 1 to 30 μL for variable volume/large loop, which depends on sample composition and gas compressibility; 1 μL for fixed volume injector and backflush injector
■ Internal sample vacuum pump
■ 0.0625 in. 316 stainless steel bulkhead deactivated sample introduction port with 5-μm filter
- Carrier Gas: Compatible with helium, hydrogen, nitrogen, and argon with 0.125 in
- Repeatability: Typically RSDs at constant temperature and pressure
- Gaz naturel, gaz de pétrole liquéfié
- Industrie chimique
- Prospection de pétrole et de gaz
